16V-24V (Rate 18V). Speed ( 18v): 0.24s/60°. Max Torque: 550kg.cm (55Nm); Rated torque: 180kg.cm ; Angle range: 0-360° ; Input signal: PWM: 50us ~ 2200us, 50-400Hz.
Magnetic encoder feedback ; hardness steel planetary gear transmission; Overcurrent protect; jam protection;over temperature protection;

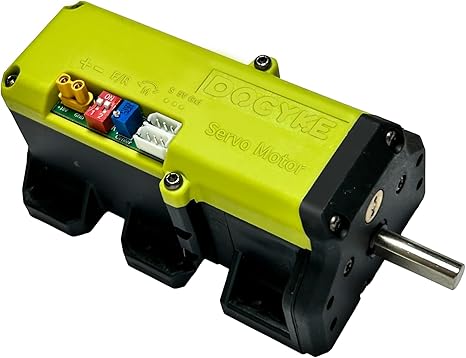

Servo Size: L：143mm; W：66mm; H：58m. Weight:600g.Product included: 550kg Servo*1, Accessories: big Bracket *2,small Bracket *2,cable*1
You can use like normal Servo or motor, DIY an advanced robot, robotic arms, PTZ cameras, Remote control vehicle, and other mechanical projects. At Motor Mode, you can use like wheel-drive, or DC motor. It can perfectly compatible with for Futaba, for JR, for SANWA, for Hitec and other remote systems and Arduino PCB
Two modes: servo and motor drive, which is selected by a DIP switch. In servo mode the shaft move 0-360 degrees for 5 to 20 mSec pulse width. There are gain and offset potentiometers to calibrate the motion . There is also a reversing DIP switch to change the sense of the rotation.
NOTE! As this is a high-power servo, so a high-power power supply (16-24V, 25A) is required, We recommend using 20V battery.
The signal port will provide 5V/1A for the control device, such as remote control receiver,arduino PCB, and we can greatly simplify the power supply of the device.
could double-shaft positioning: one is the driving shaft, one is the assistant shaft.
